WM - GNB760 S
FULLY AUTOMATIC GLUE NOTEBOOK MACHINE
Introduction
It is the best equipment for mass production of cold glue taped notebooks. The 10 hour production rate can exceed 50 thousand notebooks. This machine utilizes advanced technologies menntioned below.
- Student exercise books
- Soft cover office notebooks
- Letter paper
- Legal pads
- Other notebooks products
- Full Automatic
- Four people to operate only
- Capacity of 50,000+ notebooks / 10 hours
- Microcomputer controls
- Photoelectric tracking
- Hydraulic powered system
- Gas pressure devices
- Touch screen operation

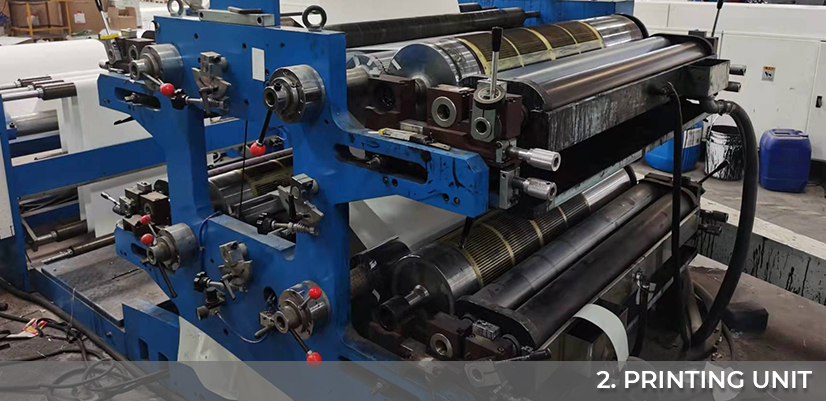

- Water ink flexographic printing
Main Output:
Features:
Specification
Product Model Type : WM - GNB760 S
Web Width : 580-1200 mm
Max Printing Speed : 300 m/min
Max Glue Binding Speed : 40 sheets/min
Rotary Slitting Length : 255-780 mm

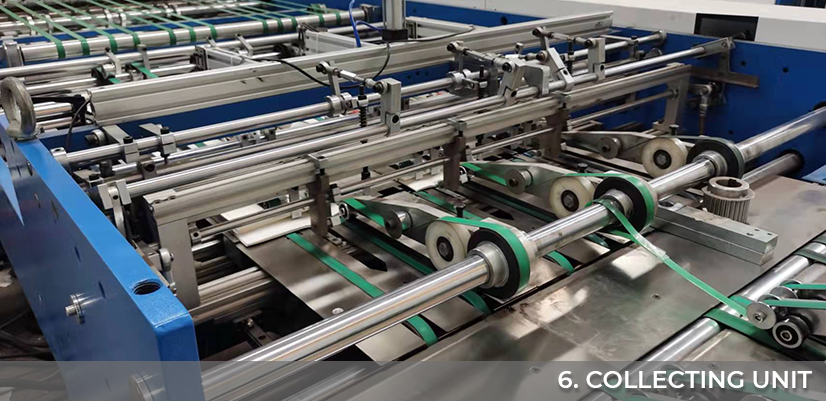

Counting & Collecting : 10-100 sheets
Max. Reel Paper Diameter : 1200 mm
Sheet Weight : 45-100 g
Cover Weight : 80-500 g
Finished Notebook Size Min : 125*145 mm
Finished Notebook Size Max : 210*297 mm
Book Binding Thickness : 12-100 sheets
Back Tape Thickness : 20-40 mm
Dry Temperature : 0~200 C
Main Motor Power : 30 KW
Total Power : 50 KW
Overal Dimensions : 18500x8500x2300 mm³
Machine Weight : 40 T
