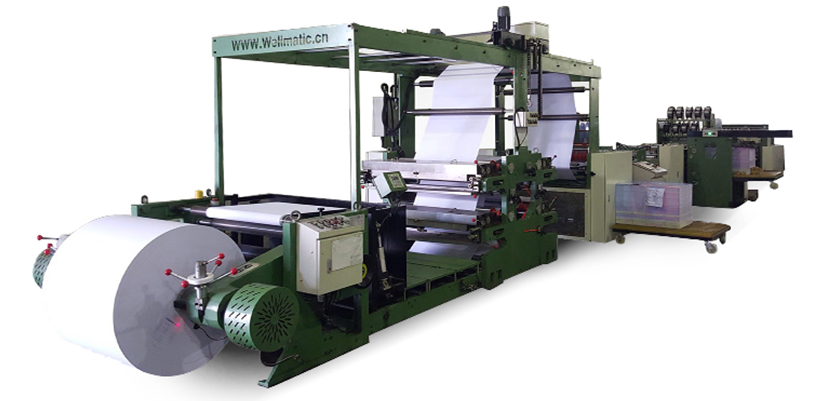

WM - 1020 DB
FULLY AUTOMATIC DRAWING BOOK MACHINE
Introduction
This machine adopted high techniques such as microcomputer control, electro-optical tracking, gas-liquid interaction, human-machine interface touch screen operation and ink flexo printing is environmentally-friendly and scientific. This production line is an ideal choice of mass production of staple-binding notebooks, exercise book, with a perfect combination of 12 processes:
- From reel one paper unwind
- High speed flexographic printing with -2/2
- Cross cutting
- Overlapping
- Collecting
- One unit auto cover inserting
- Stitching unit
- Folding
- Back pressing
- String cutting (cutting edge)
- Trimming and slitting
- Counting and delivering to the finished products of notebooks
Specification
Product Model Type : WM-1020 DB
Web Width : 580-1020 mm
Max Printing Speed : 300 m/min
Repeat Range : 300-860 mm
Cutting Length : 300-860 mm
Counting & Collecting : 4-50 sheets
Max. Reel Paper Diameter : 1500 mm
Sheet Weight : 45-120 gr
Max. Output Frequency Triming : 36 times
Notebook Size Min : 148*105 mm
Notebook Size Max : 420*297 mm
Cover Paper Weight : 80-350 gr
Appendix Weight (sheet) : 40-150 gr
Sheet Stitching thickness : 10 mm
Total Power : 32 kw
Overal Dimensions: 20800x2500x2400 mm³
Machine Weight : 24 T
Web Width : 580-1020 mm
Max Printing Speed : 300 m/min
Repeat Range : 300-860 mm
Cutting Length : 300-860 mm
Counting & Collecting : 4-50 sheets
Max. Reel Paper Diameter : 1500 mm
Sheet Weight : 45-120 gr
Max. Output Frequency Triming : 36 times
Notebook Size Min : 148*105 mm
Notebook Size Max : 420*297 mm
Cover Paper Weight : 80-350 gr
Appendix Weight (sheet) : 40-150 gr
Sheet Stitching thickness : 10 mm
Total Power : 32 kw
Overal Dimensions: 20800x2500x2400 mm³
Machine Weight : 24 T
Ask us for sample pictures!
