WM - GNB760 A

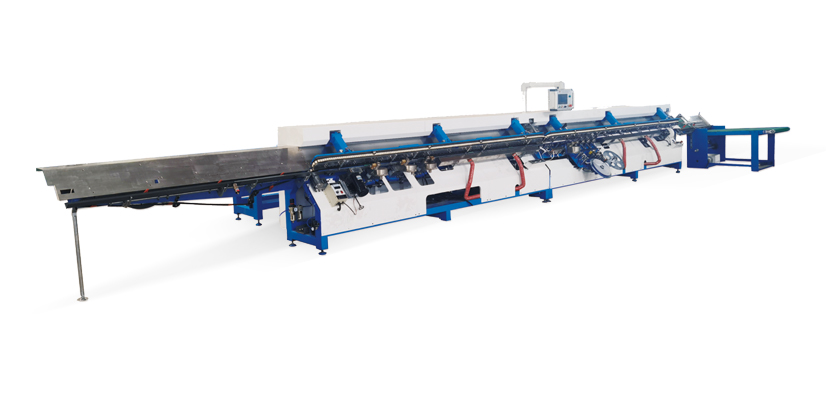

COLD GLUE NOTEBOOK TAPING MACHINE WITH COVER FEEDER
Introduction
It is the best equipment can produce student exercise books, soft cover office notebooks, high-grade plastic cover notebooks, letter paper legal pads and receipt note, and etc. This machine meets the demand for customers who have a printing machine. The production rate of this notebook is 5,000 books per hour. This machine utilizes advanced technologies menntioned below.
Main Output:
- Student exercise books
- Soft cover office notebooks
- Letter paper
- Legal pads
- Receipt note
- Other notebooks products
Features:
- Two people to operate only
- Capacity of 5,000+ notebooks / hour
- Microcomputer controls
- Photoelectric tracking
- Touch screen operation
- Environtment friendly cold glue taped technology
Processes:
- Put sheet in by hand
- Automatic feed paper cover
- Back gluing
- Drying
- Glue taping
- Product collection
Specification
Product Model Type : WM - GNB760 A
Sheet Length : 420-780 mm
Sheet Width : 130-300 mm
Sheet Weight : 45-100 g
Cover Weight : 80-500 g
Max Binding Speed : 45 ups/min
Max Binding Thickness : 12-160 sheet
Back Tape Thickness : 20-40 mm
Dry Temperature : 0~150 C
Main Motor Power : 7.5 KW
Total Power : 15 KW
Overal Dimensions : 13000x2250x1500 mm³
Machine Weight : 5 T
Sheet Length : 420-780 mm
Sheet Width : 130-300 mm
Sheet Weight : 45-100 g
Cover Weight : 80-500 g
Max Binding Speed : 45 ups/min
Max Binding Thickness : 12-160 sheet
Back Tape Thickness : 20-40 mm
Dry Temperature : 0~150 C
Main Motor Power : 7.5 KW
Total Power : 15 KW
Overal Dimensions : 13000x2250x1500 mm³
Machine Weight : 5 T
Ask us for sample images!
