WM - 1050 AX

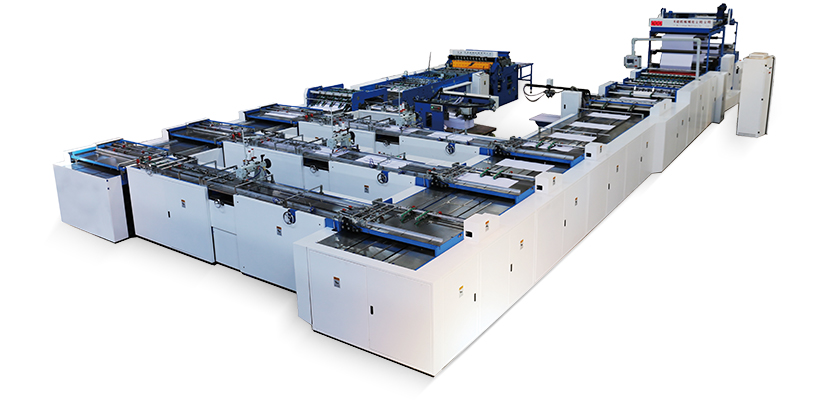

FULLY AUTOMATIC THREAD SEWN NOTEBOOK MAKING MACHINE
Introduction
This production assembly is the ideal choice of the mass production of thread sewing notebooks. The 10 hour production rate can exceed 100 thousands notebooks. This machine utilizes advanced technologies menntioned below.
- Full Automatic
- Four people to operate only
- Capacity of 50,000+ notebooks / 10 hours
- Microcomputer controls
- Photoelectric tracking
- Hydraulic powered system
- Gas pressure devices
- Touch screen operation
- Water ink flexographic printing
- Environmental friendly water ink flexographic printing
Features:
- One paper reel stand
- 2*2 color printing tower (2 sides and 2 colors)
- Paper slitting

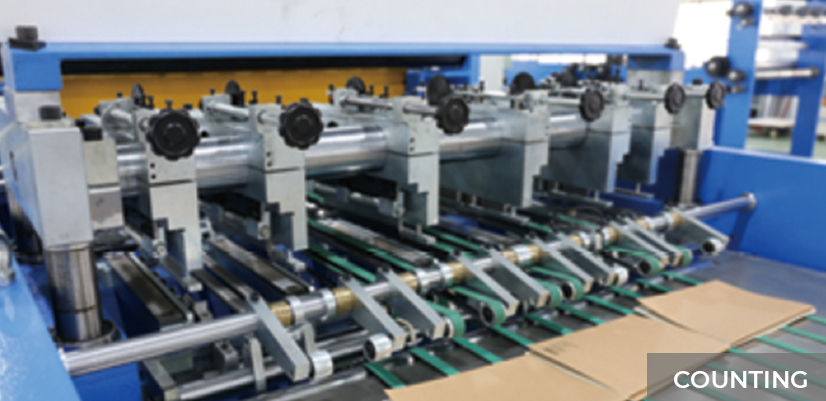

- Page counting
- Cover feeding
- 3 groups of thread sewing
- Folding

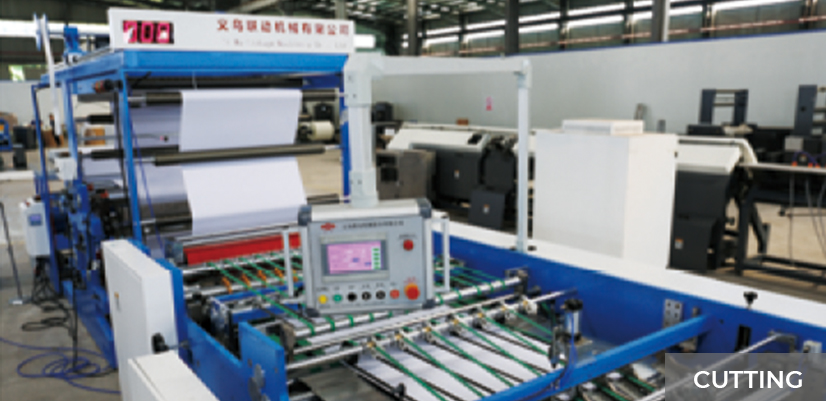

- Cross cutting
- Final trimming and finished product collection
Equipped with:
Specification
Product Model Type : WM - 1050 AX
Web Width : 580-1050 mm
Max Printing Speed : 250 m/min
Max Binding Speed : 35 pcs/min
Rotary Slitting Length : 250-780 mm
Counting & Collecting : 10-100 sheets
Max. Reel Paper Diameter : 1200 mm
Sheet Weight : 45-120 g
Cover Weight : 80-300 g
Finished Notebook Size Min : 125*175 mm
Finished Notebook Size Max : 210*297 mm
Book Binding Thickness : 5-50 sheets
Main Motor Power : 30 KW
Total Power : 45 KW
Overal Dimensions : 20400x3250x2500 mm³
Machine Weight : 24 T
Web Width : 580-1050 mm
Max Printing Speed : 250 m/min
Max Binding Speed : 35 pcs/min
Rotary Slitting Length : 250-780 mm
Counting & Collecting : 10-100 sheets
Max. Reel Paper Diameter : 1200 mm
Sheet Weight : 45-120 g
Cover Weight : 80-300 g
Finished Notebook Size Min : 125*175 mm
Finished Notebook Size Max : 210*297 mm
Book Binding Thickness : 5-50 sheets
Main Motor Power : 30 KW
Total Power : 45 KW
Overal Dimensions : 20400x3250x2500 mm³
Machine Weight : 24 T
