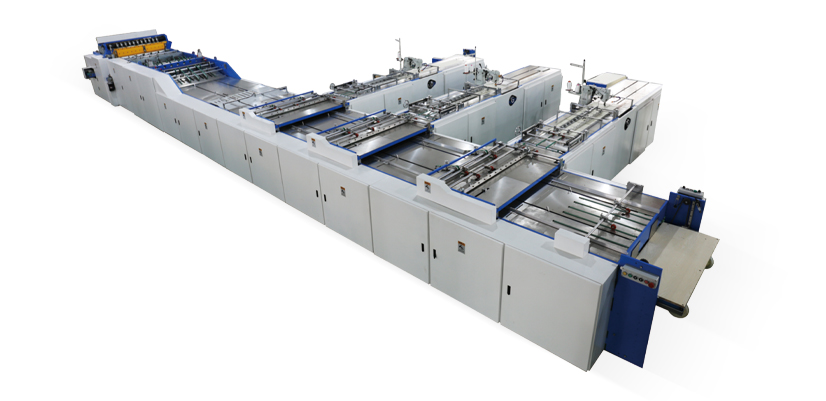

WM - 1050 CX
SEMI AUTOMATIC THREAD SEWN NOTEBOOK MAKING MACHINE
Introduction
This production assembly is the ideal choice of the mass production of thread sewing notebooks. This machine utilizes advanced technologies menntioned below.
- Five people to operate (Senior, assistant, 2 for raw material placement, and 1 collecting the finished products
- Microcomputer controls
- Photoelectric tracking
- Gas liquid interaction
- Touch screen operation
- Thread sewing
Features:
- A raw sheets desk
- 2 lines of sewing machines
- Auto thread cutting unit
- Major transport system
- A square spine pressing unit
- 3-side trimming unit
- Finished product collection
Equipped with:
Specification
Product Model Type : WM - 1050 CX
Web Length : 570-1050 mm
Web Width : 260-500 mm
Sheet Weight : 45-100 g/m³
Max Raw Sheet Thickness : 4 mm
Max Sewing Needle Distance : 9 mm/needle
Max Sewing Needle Speed : 1800 shot/min
Cross Cut Lenght Range : 100-300mm
Vertical Cut Width Range : 125-300mm
Main Motor Power : 15 KW
Total Power : 22 KW
Max Output Speed : 40 times/min
Overal Dimensions : 15000x4500x1600 mm³
Machine Weight : 12 T
Web Length : 570-1050 mm
Web Width : 260-500 mm
Sheet Weight : 45-100 g/m³
Max Raw Sheet Thickness : 4 mm
Max Sewing Needle Distance : 9 mm/needle
Max Sewing Needle Speed : 1800 shot/min
Cross Cut Lenght Range : 100-300mm
Vertical Cut Width Range : 125-300mm
Main Motor Power : 15 KW
Total Power : 22 KW
Max Output Speed : 40 times/min
Overal Dimensions : 15000x4500x1600 mm³
Machine Weight : 12 T
Ask us for sample pictures!
