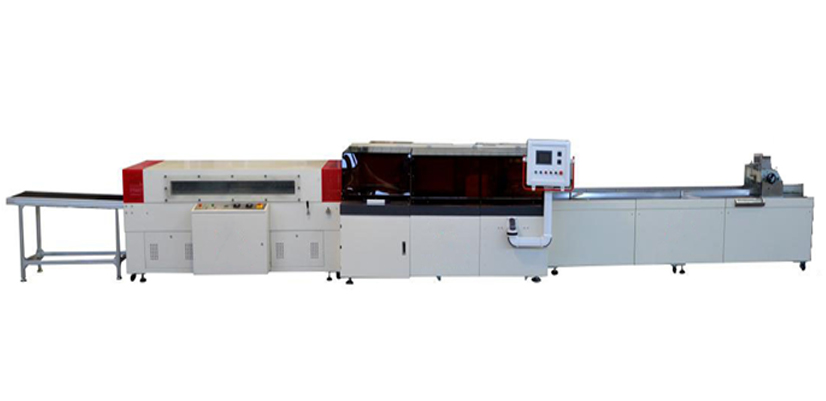

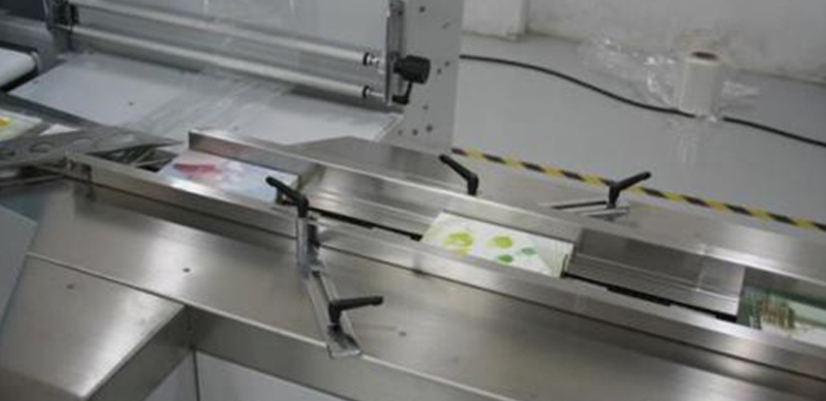

HIGH SPEED RECIPROCATING SEALING, CONSTANT TEMPERATURE SHRINKS PACKAGING MACHINE
Please contact us for more info!
Introduction
G118 high speed reciprocating sealing machine adopts Mitsubishi servo drive system to achieve continuous sealing and cutting, effectively improve the efficiency of automatic sealing. The speed of the machine can reach the cutting twice per second. The machine is capable for 5-120 pieces of packaging capacity per minute, to meet the requirements of customers for high speed and effective products.
- Adopts imported components - the feeding, film feeding, sealing and cutting, shrinkage, and discharge of the machine are controlled by servo motor for stable and durable performance.
- The use of reciprocating sealing technology helps for continuous transmission of products without stopping, continuous reciprocating sealing knife cutting, and avoiding product sliding and shift phenomenon thus creates good packaging effect.
- Adopts the edge sealing pre-technology. The edge sealing in the packaging process is continuously without stopping for sealing and cutting with no crack. The width of residual film is about 50% of the traditional equipment, thus saves packaging costs.
- The machine is equipped with an adaptive feeding system, which can automatically adjust the speed of the feeding system according to the packaging speed of the host machine.
- Suitable for a wide range of products - for different sizes of products only need to input product length, width and height in the control panel. Given the parameters, the machine automatically able to achieve perfect shrink sealing appearance.
- Adopting advanced downdraft circulation technology - making full use of heat energy, improving energy efficiency and saving electricity consumption. The wind direction in the shrink tunnel and the air volume at the bottom can be adjusted freely to achieve the packing effect.
- Speed adjustment is also one - button synchronous completion.
- The control platform adopts the rotation of 320 degrees and very easy to operate.
Specification
| Parts | Spec | Technology Information |
|---|---|---|
| Voltage Power | 3& 380V 50/60Hz ≤3kw | |
| Sealing system | Heat source | Stainless steel heating pipe, long service life |

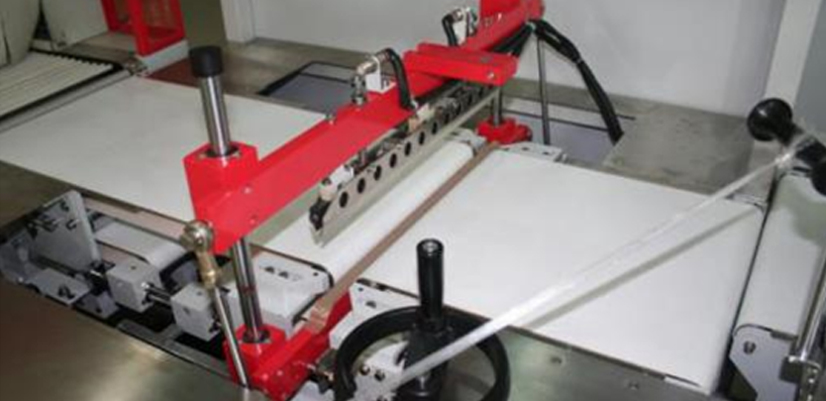

| Cutting knife | Adopt the anti-stick and high-temperature alloy sealing knife, the knife is coated with Teflon anti-stick film. | |
| Knife temperature control | Adopts Japanese "OMRON" digital display temperature controller and imported thermal sensing control, the temperature is adjustable from 0 to 400 'C | |
| Knife dimension | Width and height can be adjusted by manual wheel Seal cutting knife size: sealing size: L(60-1000)×W(50-400)×H(5-150)mm | |
| Sealing knife protection | Adopt the German SICK. Effectively prevent packaging objects by mistake | |
| Motor | JAPAN "MITSUBISHI" SERVO MOTOR CONTROL HORIZONTALS - To ensure that the sealing is firm and stable, and the noise is low when sealing |
|
| Sliding rail | The use of "Taiwan Highwin" to ensure the sealing knife running up and down smoothly | |
| Cylinder | Adopt AirTAC cylinder to make sure sealing tight and accurate | |
| Feeding system | Belt | Germany West Green PU conveyor belt |
| Motor | Japan "Mitsubishi" to ensure smooth delivery | |
| Transducer | Japan MITSUBISHI control front and back belt feeding speed. | |
| Detector | Germany "LEUZE" photoelectric sensor, accurate and sensitive detection of product delivery and stop | |
| Recovery system | Motor | Taiwan's "GPG" guarantees accurate and uniform recycling of waste |
| Transducer | Mitsubishi controls the speed of recycling according to the speed of packaging | |
| Sensor switch | Adopting German "IFM" to accurately control the time of recycling waste | |
| Film feeding system | Motor | Taiwan GPG guarantees film feeding smooth and steady |
| Sensor switch | Adopt German IFM to accurately control the length of film feeding | |
| PLC | Japan Mitsubishi | |
| Transducer | Japan Mitsubishi | |
| Servo drive | Japan Mitsubishi | |
| Bearing | NSK | |
| Contactor | France SCHNEIDER | |
| Intermediate relay | German Schneider | |
| HMI | MCGS 10inch 85000 color touch screen | |
| Temperature controller | Japan OMRON | |
| Emergency switch | France Schneider | |
| Puncher | Multiple hole punchers, so that the air in the bag can be quickly discharged when contracting | |
| Mechanical parts | Carbon steel is sprayed with plastic, and the key parts are made of stainless-steel plate and aluminum profile to ensure the firm structure | |
| Machine size | 6242×1850×1500mm | |
| Packing speed | 80-120 p/m according to different size of products | |
| Air pressure | 5.5KG/cm2 | |
| Power | AC 380V 23KW | |
| Processing demands | The surface of corrosion resistant structural materials is plastic sprayed or nickel plated | |
| Item | Detail | |
|---|---|---|
| Heat system | Insulating layer | High temperature resistant rock wool production, working surface temperature is low, reduce heat loss |
| Temperature control | Japan "OMRON" temperature controller and imported thermal sensing, temperature 0-400 'C | |
| Feeding system | Motor | Motor &reduction box imported from Taiwan |
| Transducer | Delta, to ensure smooth delivery | |
| Air blowing system | Specially designed lower air duct system, the product is heated evenly, high power imported high temperature resistant air motor, according to the different products to adjust the contraction furnace wind speed, air volume and wind direction adjustable | |
| Control system | Contactor | France SCHNEID |
| Intermediate relay | Japan IDEC | |
| Temperature controller | Japan “OMRON” | |
| Emergency switch | Japan IDEC | |
| Main body | Shell plate | Using ordinary carbon steel plate by bending, surface spray treatment |
| Inner plate | Made of galvanized sheet hydraulic | |
| Shrink tunnel size | L2200*W540*H250mm | |
| Voltage/power | 3&380V/50Hz average 16KW | |
| Machine size | L2700*W1074*H1200mm | |
