BF4518

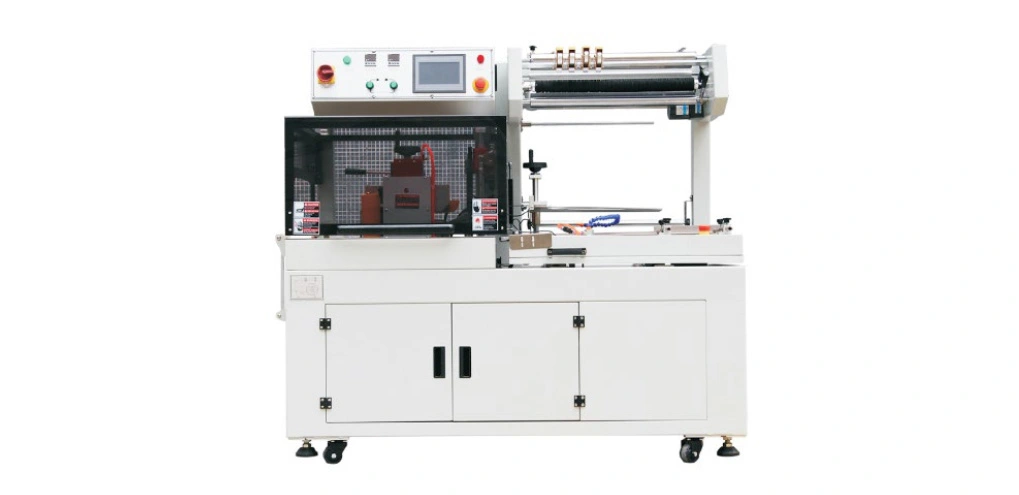

AUTOMATIC EDGE SEALING MACHINE
Please contact us for more info!
FEATURES
- Longitudinal seal sustainable seal, the length of the packaged product is not limited.
- Fast packing speed, up to 60 pieces/min.
- The sealing and cutting are controlled by a servo motor to ensure the precise positioning of the sealing and cutting and the quality of the sealing and cutting lines.
- The sealing and cutting knife has an automatic protection function, which can effectively prevent the products from being cut by mistake.
- The equipment has high working efficiency and fully meets the requirements of large-scale, continuous and high-speed packaging operations.
- Two modes of automatic feeding or manual feeding can be selected.
SCOPE OF APPLICATION
Biscuits, books, CDs, glass products, paper towels, cards, photo frames, aluminum profiles, wood products and other products are packaged individually or in combination.
Specification
| Voltage | 220V / 50Hz |
|---|---|
| Air Pressure Required | 5 – 7 kg/cm² |
| Power | 1.8KW |
| Packing Speed | 15 – 60 bags/min |
| Maximum Packing Length | Unlimited |
| Maximum Packing Height | ≤400mm |
| Cutter Size (W×H) | Unlimited × 450 mm |
| Applicable Shrink Film | POF / PE |
| External Dimensions (W×L×H) | 1800 / 2000 × 850 × 1500 mm |
| Net Weight | 380 kg |
Please contact us for sample images!
