Cutting Trimming Machines

Introduction

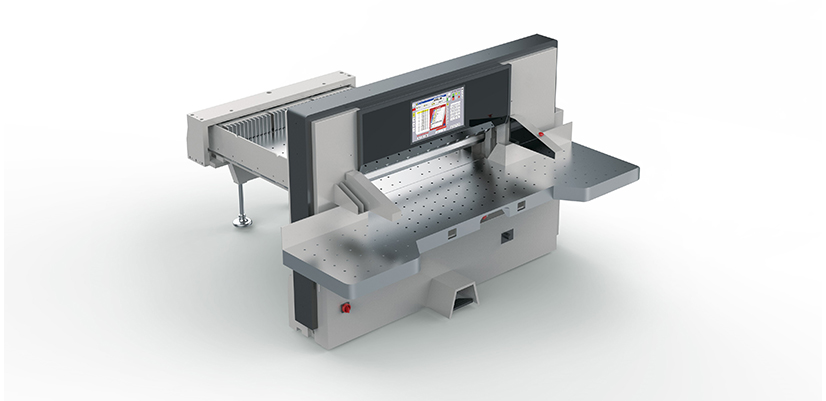

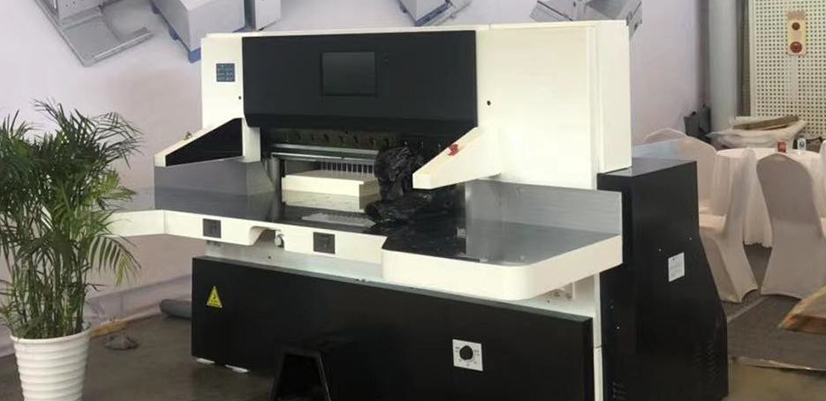

High-speed programmable paper cutting machine is a type of cutting machinery widely used for cutting materials such as paper, leather, plastic, and cardboard. The paper cutting machine consists of a main body, worktable, paper pushing mechanism, paper pressing mechanism, and cutting mechanism. The precise paper pushing mechanism, equipped with a high-precision servo motor, is used to accurately position and push the paper. The paper pressing mechanism, with an adjustable hydraulic system, tightly presses the positioned paper to ensure the original positioning accuracy is maintained during the cutting process. The cutting mechanism is responsible for cutting the paper, while the side gauge serves as a lateral guide, and the worktable provides support.

PROCESSES:

• Position the paper pusher according to the size of the paper to be cut.
• Align the paper against the front surface of the paper pusher and the side gauge for paper positioning.
• The paper presser descends first to firmly press the paper, followed by the cutting blade descending to cut the paper.
• After the cutting is completed, the cutting blade retracts from the paper stack, and then the paper presser ascends to its original position.

COMPUTER SYSTEM:

• 19-inch full touch display screen
• German operating system is equipped to meet the operating habits of domestic users and guarantee convenient operation
• Mainboard adopted industrial chip imported from Italy
• Highly sensitive of the touch screen has real-time responses
• Dimension in front of knife will be displayed to facilitate sizes for cutting
• Program storage capacity is 300 programs, each program can store 200 items cutting size
• Computing with four operations, output programs in real time
• Equipment has relative positioning function relative to current position
• With minimal compensation, it can rapidly correct program errors due to paper distortions
• It can rapidly find out user-defined number of cutters
• Each air cushion program can be programmed
• The time of automatic cutting signals can be set up and cancelled; single automatic cutting can be started by inputting a password
• High and low speeds can be manually switched over rapidly
• A paper-pushing program is equipped to push paper automatically so as to guarantee safety and enhance operation efficiency
• Display precision is 0.01mm
• Multiple languages such as Chinese and English are available for order management
• Manual and automatic operations can be rapidly switched over to enhance efficiency to the greatest extent;
• Voice messages are equipped to make users judge equipment conditions correctly

MACHINE FEATURES:

• Chrome-plated for main worktable and side tables, and has the device of air cushion, which is convenient for back gauge running.
• Adopts high stiffness linear guides and high precision gapless lead screw to ensure back gauge accuracy and effectively improve the anti-impact capability against unidirectional impact.
• Adopts double hydraulic system which is composed of two hydraulic circuits. When press the foot pedal, the hydraulic oil goes through the primary hydraulic circuit made up of reducing valve and spillover valve, and gives the cutting paper micro pressure. The pressure is only several kilograms and can’t hurt operator’s hands. At the time of cutting paper, put thousands of kilograms of high pressure to ensure the cutting quality and safe operation.
• Uses Japan NSK bearing of low maintenance, Italy oil pump and German DICHTOMATIK sealing elements. Main electronic units are from French TE and Japanese ORMON brands.
• It adopts inside electronic knife locker, which can effectively avoid knife-sliding.
• Adopts main motor overloading protection safety device for cutting, infrared photoelectric protection, and buttons by two hands safety devices.
• The large components adopt HT250 cast iron and has accepted vibration stress relief, so they won’t deform after been used for long time.

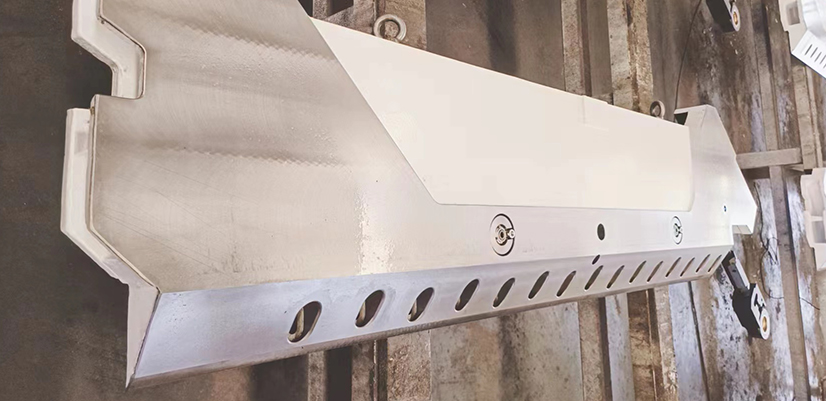

• It has mechanical assistance device for knife replacement, illuminated working surface/optical cutting line indicator and a tool box with tools, operating instruction, computer manual and spare parts list. It has total 2 HSS knives.

Specification
